Project Description
2835 CONSTANT CURRENT STRIPS
Features
Using 7-8lm/led while normal 2835LED max current is 60mA/led, only used 40mA/led for strip.Longer connection length without voltage drop, some type can reach 10m connection length. Its IC with over temperature proction and over voltage protection, more reliable quality.
Parmeters
| TYPE | SL-F2835-60-*-24-cc |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 60pcs |
| INPUT | DC24V |
| COLOR | 2800k-3200k 4000k-4500k 6000k-6500k |
| POWER/M | 12w |
| PCB WIDTH | 10mm |
| LM/M | 1050Lm |
| CUTTABLE SIZE | 100mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F2835-70-*-24-cc |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 70pcs |
| INPUT | DC24V |
| COLOR | 2800k-3200k 4000k-4500k 6000k-6500k |
| POWER/M | 12w |
| PCB WIDTH | 10mm |
| LM/M | 1250Lm |
| CUTTABLE SIZE | 100mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F2835-112-*-24-cc |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 112pcs |
| INPUT | DC24V |
| COLOR | 2800k-3200k 4000k-4500k 6000k-6500k |
| POWER/M | 19.2w |
| PCB WIDTH | 10mm |
| LM/M | 1750Lm |
| CUTTABLE SIZE | 62.5mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F2835-120-*-24-cc |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 120pcs |
| INPUT | DC24V |
| COLOR | 2800k-3200k 4000k-4500k 6000k-6500k |
| POWER/M | 24w |
| PCB WIDTH | 10mm |
| LM/M | 2150Lm |
| CUTTABLE SIZE | 50mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |
| TYPE | SL-F2835-140-*-24-cc |
| LED TYPE | SMD2835 |
| LED Q’TY/M | 140pcs |
| INPUT | DC24V |
| COLOR | 2800k-3200k 4000k-4500k 6000k-6500k |
| POWER/M | 24w |
| PCB WIDTH | 15mm |
| LM/M | 2500Lm |
| CUTTABLE SIZE | 100mm/24V |
| IP GRADE | IP65/IP67/IP68 |
| LENGTH | 5m/roll |

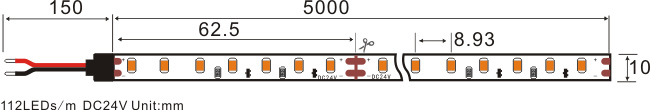

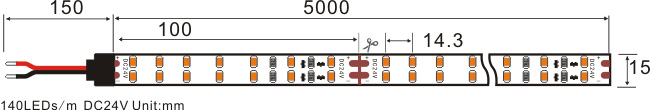

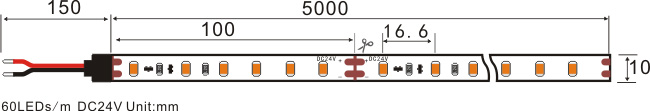

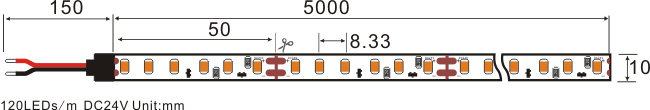

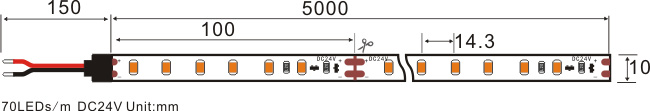

Dimensions
Waterproof Type
